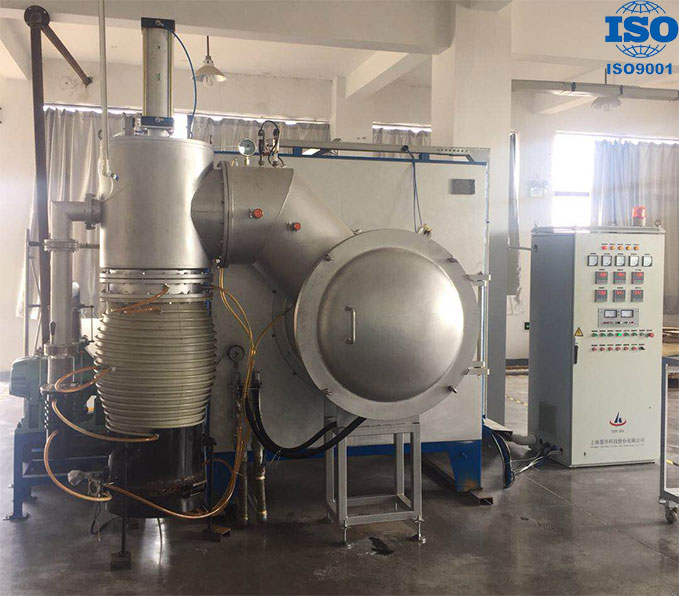

Low temperature vacuum brazing furnace 材料热处理
Online inquiry and order
details

Application:

Vacuum brazing furnace are mainly applied for vacuum brazing, solution aging and bright annealing of high speed,

high-alloyed tool and die steel and electrical magnetic material, nonferrous metal and stainless steel etc., also for sintering of magnetic material.

Features:

ZDS series low temperature brazing furnace, control system uses PLC controls mechanical motion. Intelligent temperature

controller controls the temperature. Operation can be switched between automatically and manually. Simple to use.

The furnace possesses over-temperature, over-current automatic sound-light alarm functions.

Safe protection to cut off the power stopping the heating automatically.

Main technical parameters:

ModelChamber size (LxWxH) (mm)Loading capacity (kg/batch)Max. Temp. (℃)Uniformity of  Temp.Ultimate vacuum    (Pa)Leak rate                (Pa/h)Heating Power (KW)
(℃)
ZDS950-300300X200X20020950±38.0X10﹣40.6750
ZDS950-500500X300X3005080
ZDS950-700700X500X500150120
ZDS950-900900X600X600300150
ZDS950-11001100X600X600400200
