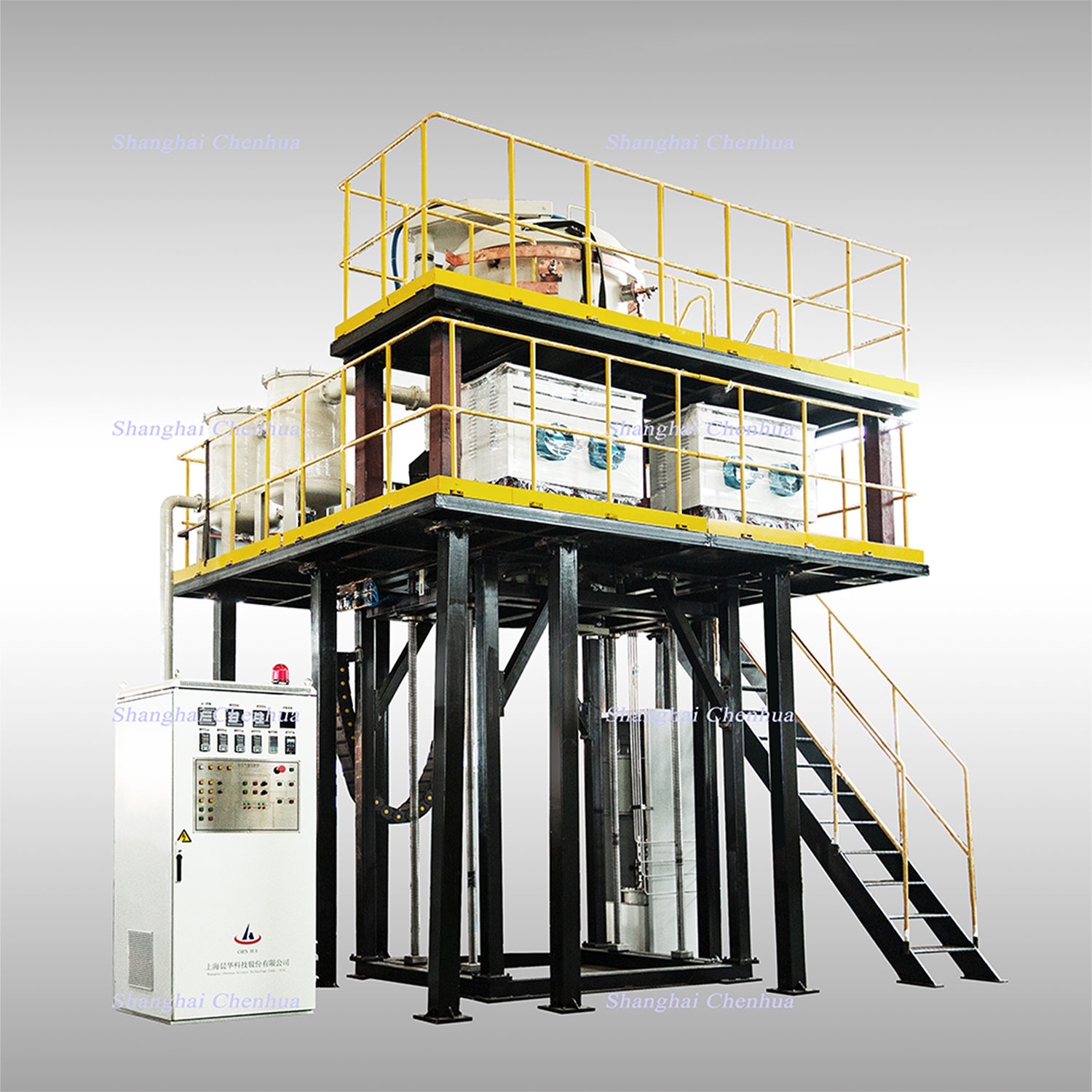

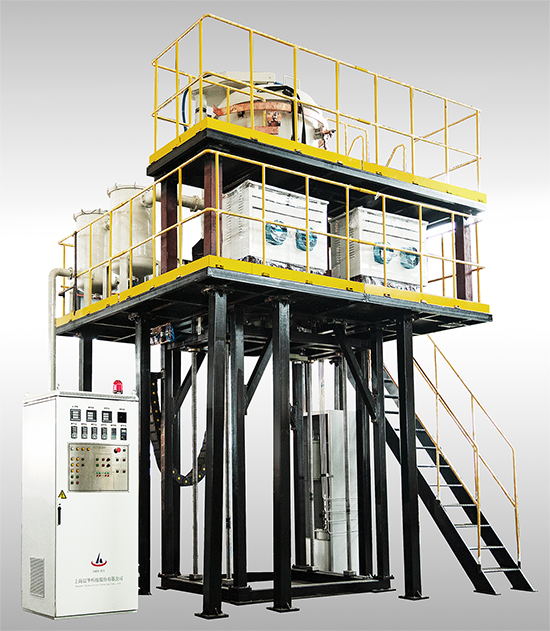

Chemical Vapour Desposition Furnace
Chemical Vapour Desposition Furnace also is an ideal tool to sinter the carbon-caron or carbon-ceamic composite materials.
Online inquiry and order
details

Application:

Mainly used to make the composite materials of the surface coating of graphite or carbon-carbon,

and carbon-carbon composite coasting.

Features:

1. Vertical structure, furnace shell made of corrosion-resistant materials.

2. Unique inner hood gas-in and out structure,owning better temperature uniformity inside hot zone.

3.  Precise atmosphere control,vacuum system equipped with filter, exhaust gas treatment system is optional.

4.  For ease of loading & unloading, a loading & unloading trolley equipped, improving production effiency.

 For ease of loading & unloading, a loading & unloading trolley equipped, improving production effiency.

Main technical parameters:

No.

Model

Working zone

Max. Temperature

Vacuum

Leakin rate

Power

ØXHmm

(℃)

Pa

Pa/h

KW

1

ZT-160-15

600X900

1500

1-100

0.67

160

2

ZT-245-15

800X1200

1500

1-100

0.67

245

3

ZT-300-15

900X1500

1500

1-100

0.67

300

4

ZT-430-15

1500X2500

1500

1-100

0.67

430

5

ZT-550-15

1800X3000

1500

1-100

0.67

550


※Non-standards product, furnace can be customized on your request.
